CHARACTERISTICS:

• Approved range enabling compliance with standard NF EN143510.
• Tubular profile system with clipped joint cover.

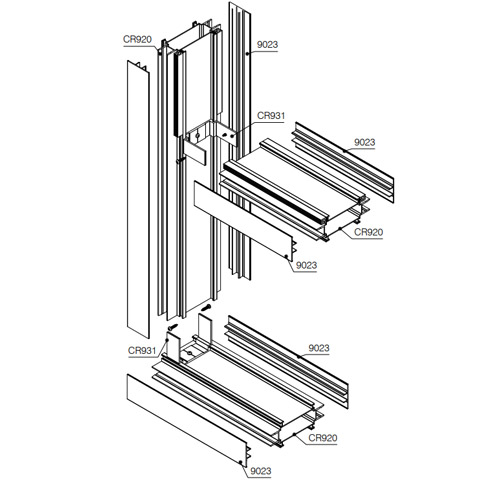

• Structure in lacquered aluminium, generally composed of the following elements:

✓ Upper and lower aluminium crossbar, height 42 mm

✓ Standard 40×70 mm cross-section upright with grooves, allowing direct mechanical clipping of the joint cover.

✓ 42 mm wide flat joint cover.

✓ Right angles 2 or 3 directions or variable angles with round post.

✓ Electrical baseboard, 70 mm wide and 72 mm high. Installed as a bottom rail or vertically, it separates different electrical and computer wiring.

• The system can produce any angle, from 90° upwards.
• Single, laminated or insulated glazing from 4 to 8 mm.
• Blinds or fluorescent lighting can be integrated between two panes of glass.
