CHARACTERISTICS:

• Approved range enabling compliance with standard NF EN14351.
• Tubular profile system with clipped joint cover.

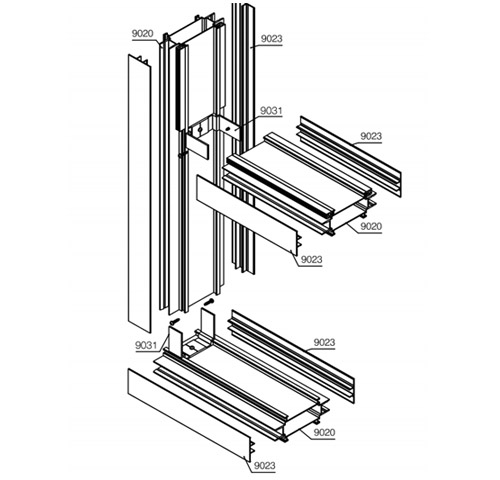

• Structure in lacquered aluminium, generally composed of the following elements:

✓ Upper and lower aluminium crosspiece, height 40.5 mm.

✓ Standard 40×100 mm cross-section upright with grooves, allowing direct mechanical clipping of the joint cover.

✓ 40 mm wide flat joint cover.

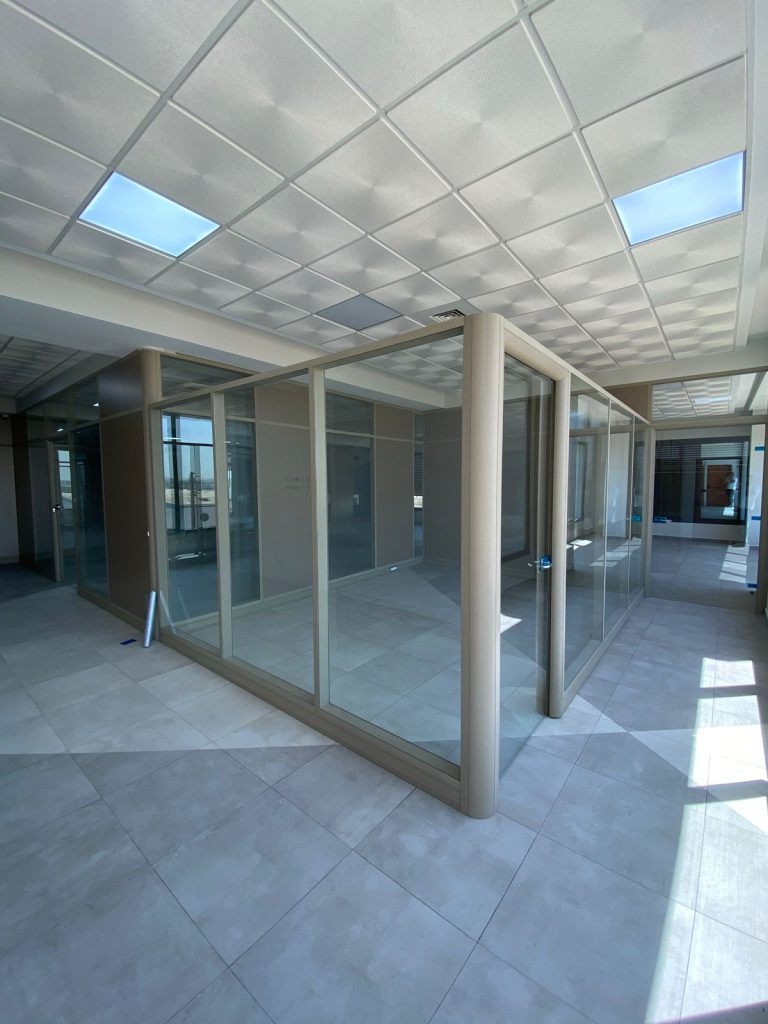

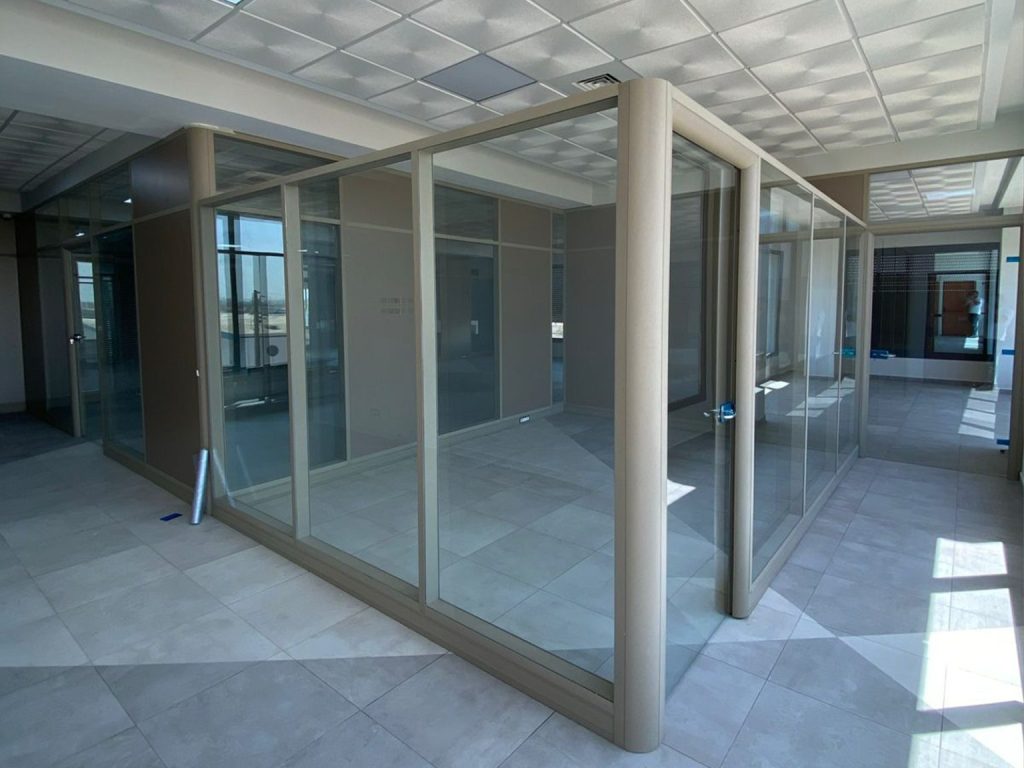

✓ Right angles 2 or 3 directions or variable angles with round post.

✓ Electrical baseboard, 100 mm wide and 120 mm high. Installed as a bottom rail or vertically, it separates different electrical and computer wiring.

• The system can produce any angle, from 90° upwards.
• Takes 18 mm solid panels with coverings and a 50 mm insulating panel (glass wool or similar).
• Single, laminated or insulated glazing from 4 to 18 mm.

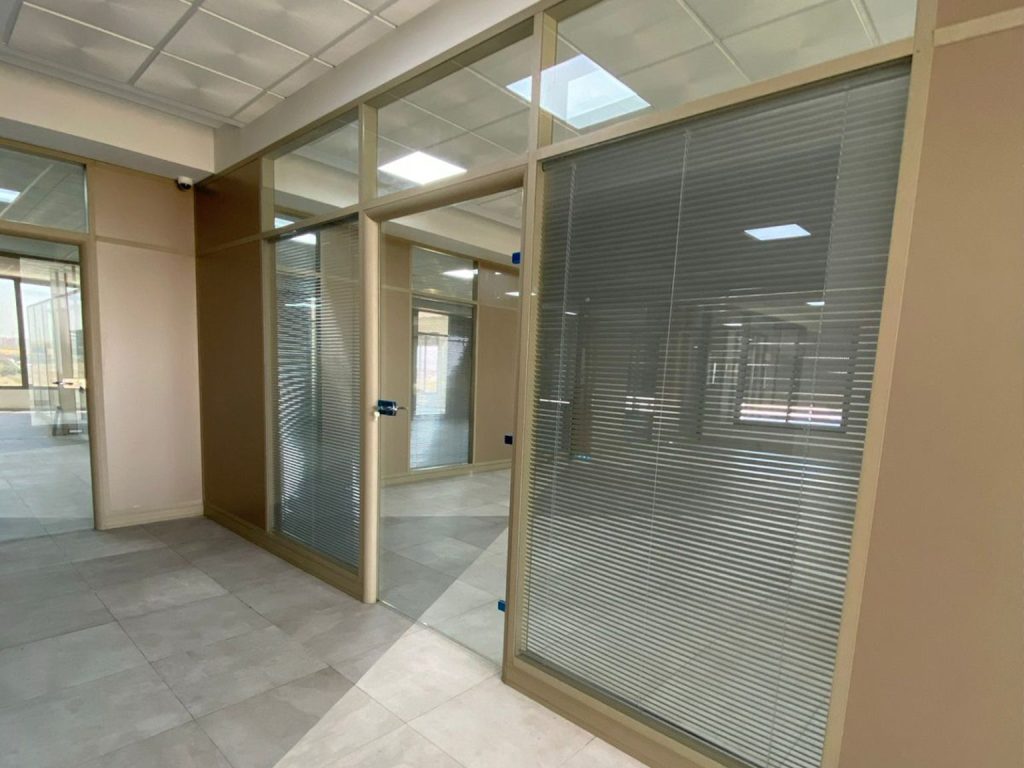

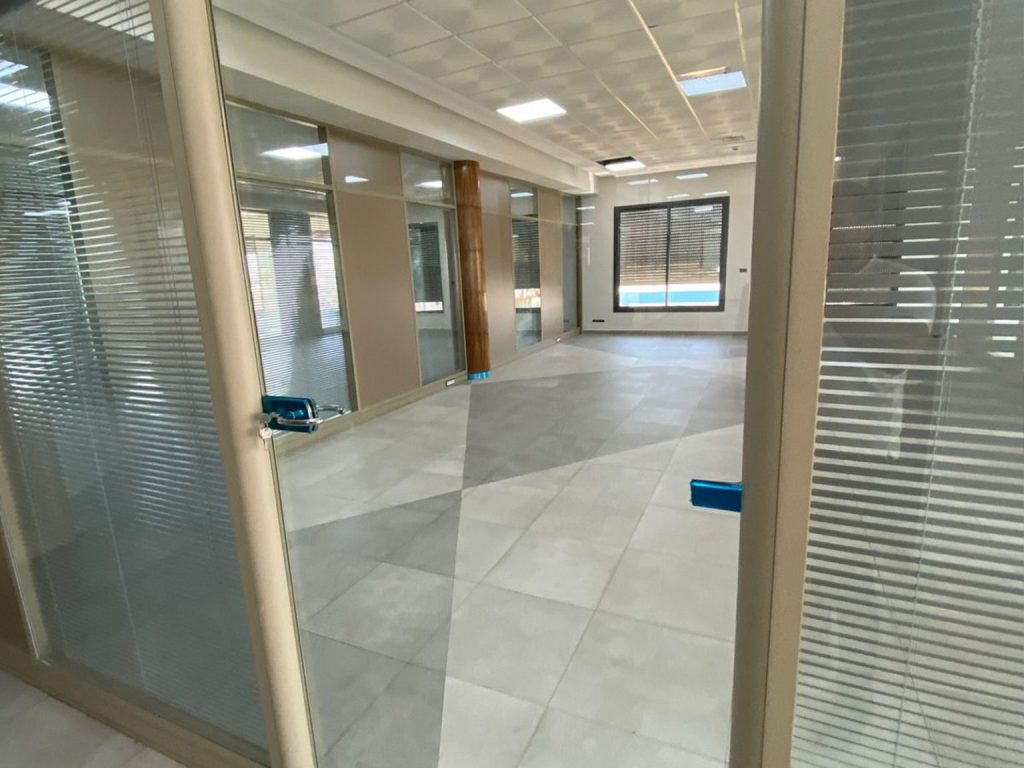

• Blinds or fluorescent lighting can be integrated between two panes of glass.
