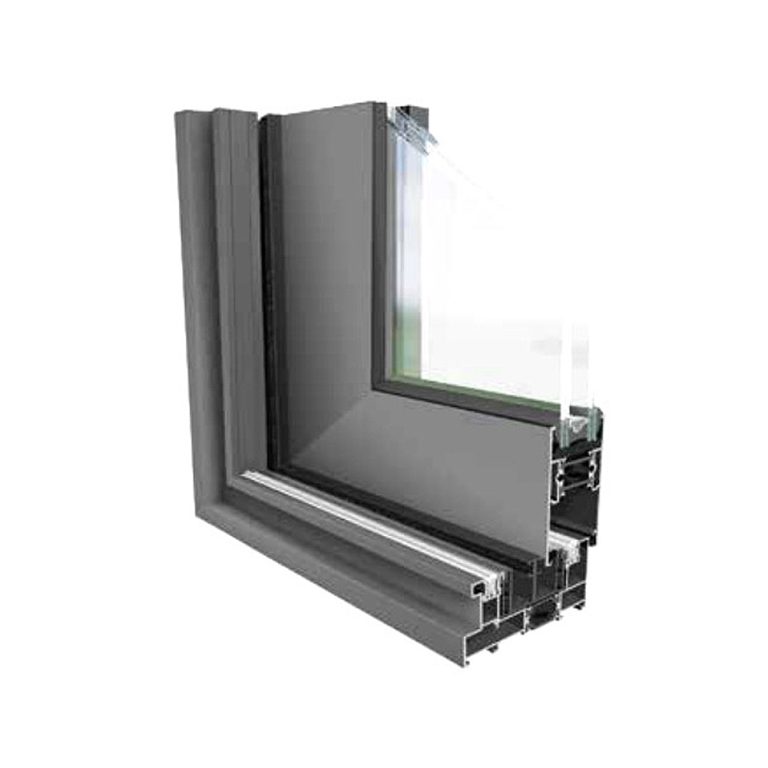

85 RT (Thermal Break)
CHARACTERISTICS:
- Minimalist, perimeter sliding system
- Thermal break profile
- Aluminium alloy EN-AW 6063
- Mitered frame assembly
- Sash assembly available in two versions: mitered and straight cut
- Frame available in 2, 3 and 4 rail versions
- EPDM sealing gasket
- Single-point locking with anti-mishandling system
- Multi-point locking with handle
- Average thickness: 1.5 mm
- Glazing thickness: up to 28 mm
- Frame construction: 85 mm
- Minimalist 30 mm cross-section
SYSTEM PERFORMANCE
AEV PERFORMANCE
| REPORT NO. | DESIGNATION | DIMENSIONS | AEV CLASSIFICATION |
|---|---|---|---|
| 20/240172458 | 2-pane sliding window | (1230 x1480)mm | A3 E7A V4C |
Max. weight per leaf :
- 85RT with rollers: 160 kg
Maximum dimensions per leaf :
- 85 RT lift: (1700 x 2500) mm
- 85RT with rollers: (1400 x 2300) mm
Acoustic attenuation :
- 85RT with rollers: 30 (-1; -2) dB
THERMAL PERFORMANCE
Heat transfer coefficient :
- Uw = 1.6 W/(m².K)
